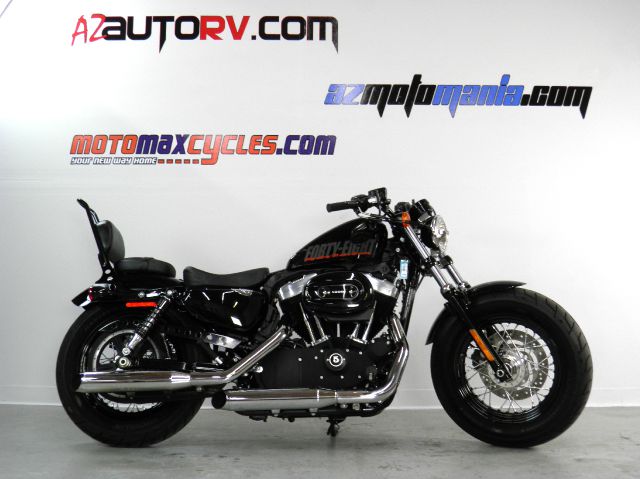

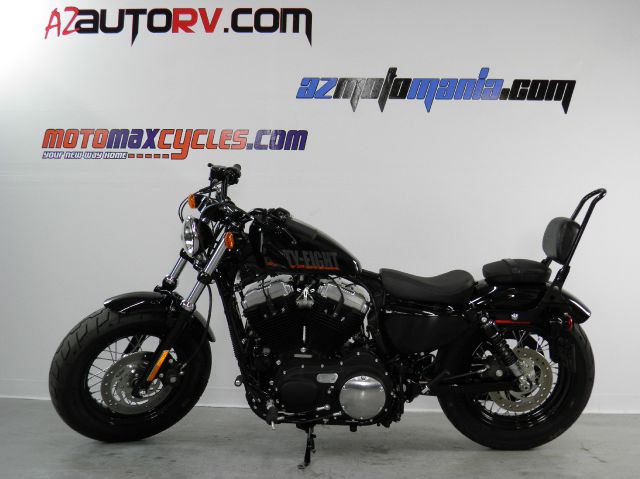

2013 Harley Davidson XL1200X Sportster Forty-Eight Unknown

DIMENSIONS, Length 88.6 in. (2250 mm), Overall Width 32.7 in. (831 mm), Overall Height 42 in. (1067 mm), Seat Height:, • Laden2 26 in. (660 mm), • Unladen 26.8 in. (681 mm), Ground Clearance 3.9 in. (99 mm), Rake (steering head) 30°, Fork Angle 30°, Trail 4.2 in. (107 mm), Wheelbase 59.8 in. (1519 mm), , Fuel Capacity 2.1 gal. (7.9 L) (warning light at approximately 0.65 gal.), Oil Capacity (w-filter) 2.8 qts. (2.6 L), Transmission Capacity 1 qt. (.95 L), Weight:, • As Shipped 553 lbs. (251 kg), • In Running Order 573 lbs. (260 kg), • Gross Vehicle Weight Rating 1000 lbs. (454 kg), • Gross Axle Weight Rating, • Front 335 lbs. (152 kg), • Rear 665 lbs. (302 kg), ENGINE, Engine Air-cooled, Evolution, Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, Bore x Stroke 3.5 in. x 3.812 in. (88.9 mm x 96.8 mm), Displacement 73.3 cu. in. (1200 cc), Compression Ratio 9.7:1, Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI), Air Cleaner Paper cartridge type, Lubrication System Dry-sump, DRIVETRAIN, Primary Drive Chain, 57-38 ratio, Final Drive Belt, 68-29 ratio, Clutch Multi-plate, wet, Transmission 5-speed, Gear Ratios (overall): U.S., • 1st 9.315, • 2nd 6.653, • 3rd 4.948, • 4th 4.102, • 5th 3.517, , Call the sales team at azmotomania at 888-621-8889 , , We Finance!
